تفاصيل المنتج:
شروط الدفع والشحن:
|
| نموذج: | أنابيب من التيتانيوم | درجة: | الدرجة 1، الدرجة 2، الدرجة 3، الدرجة 5، الدرجة 7، الدرجة 9، الدرجة 11، الدرجة 12، الدرجة 16، الدرجة |
|---|---|---|---|
| معيار: | ASTM، AMS، GB/T | سطح: | مصقول أو وفقا لمتطلبات العملاء. |
| مقاس: | dia1.0-dia350mm (+1/-1mm) * 4000mm |

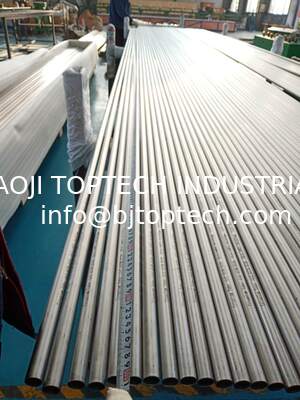

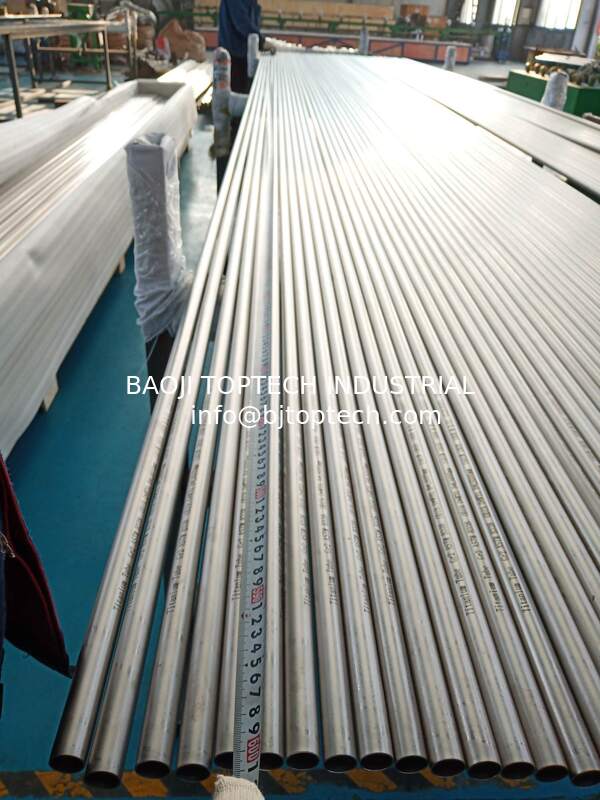

Titanium pipe and Titanium tube
Grade : Gr1,Gr2,Gr3,Gr5,Gr7,Gr9,Gr11,Gr12,Gr16,Gr17,Gr23
Standard: ASTM B337,ASTM B338,ASTM B861
Specifications :
1.Dimensions
A).Seamless titanium tube range:
OD:2.0mm-219mm
WT:0.3mm-120mm
Length: <18000mm
Material:Gr1, Gr2, Gr3, Gr4 Gr5, Gr7, Gr9, Gr11, Gr12, Gr16,Gr17, Gr23
B).Welded titanium tube range:
OD:6mm-219mm
WT:0.5mm-10mm
Length:<18000mm
Material: Gr1,Gr2,Gr3,Gr5,Gr9
| Name | Size(MM) | Grade |
| Seamless Tubes | Ф(3~114)×(0.2~6.0)×L | Gr1,Gr2,Gr3,Gr4,Gr5, Gr7,Gr11,Gr23etc |
| Welded Tubes | Ф(10~40)×(0.5~5.0)×L | |
| Extruded Tubes | Ф(25~210)×(6.0~30)×L |
Product Description
(1)Material: titanium
Grade: Gr1 2 3 4 5 6 7 9 10...
Standard: ASTM B348, ASTM F67, ASTM F136, AMS4928, MIL4911
Size: high-accuracy----Dia3.0-20mm*L>3000mm
Normal----Dia6.0-200mm*L1000-6000(R/M)
(2) Applications of our products
Medical, aerospace, military, petrochemical engineering, metallurgy, electroplating, vacuuming metal usage, sports and so on.
| Product | Titanium and Titanium alloy welded tube |
| Size | OD: 19.0mm (0.75") and 25.4mm (1.0"), Length: 1000mm-15000mm (39.4"-590.6"), Thickness: 0.5mm-0.7mm (0.02"-0.028") Or Customized |
| Material | Gr.1, Gr.2, Gr.9 |
| Standard | ASTM B337, ASTM SB338, ASTM B861, ASTM B862,etc. |
| Shape | Round |
Specifications
| Product | Titanium and Titanium alloy seamless tube & pipe |
| Size |
Cold-rolled: OD: 8.0mm-114.0mm (0.32"-4.49"), WT: 0.5mm-7.5mm (0.02"-0.30"), Length: 4000mm (157.5") max (OD.: 8.0mm-15.0mm, 0.32"-0.59"), 12000mm (472.4") max (OD. over 15mm, 0.59") Extruded: OD: 25mm-210mm (0.98"-8.27"), WT: 4mm-30mm (0.157"-1.18"), Length: 1000mm-10000mm (39.4"-393.7") |
| Material | Gr.1, Gr.2, Gr.3, Gr.7, Gr.9, Gr.12, etc. |
| Standard | ASTM B 338, ASTM B 337, ASTM B 861 |
| Shape | Round |
Specific dimension for cold-rilled tubes & pipes:
| OD(mm) | 8.0-10.0 | 10.0-15.0 | 15.0-20.0 | 20.0-25.0 | 25.0-30.0 | 30.0-35.0 |
| WT(mm) | 0.15-2.0 | 0.2-2.0 | 0.4-2.7 | 0.45-3.2 | 0.45-3.3 | 0.45-3.4 |
| OD(mm) | 35.0-40.0 | 41.0-45.0 | 46.0-50.0 | 51.0-55.0 | 56.0-60.0 | 61.0-65.0 |
| WT(mm) | 0.5-3.5 | 0.6-3.8 | 0.6-3.8 | 0.6-4.4 | 0.8-4.6 | 0.9-4.7 |
| OD(mm) | 66.0-70.0> | 71.0-75.0> | 76.0-95.0 | 96.0-114.0 | ||
| WT(mm) | 1.0-4.9 | 1.2-6.0> | 1.2-7.1 | 1.3-7.5 |
| Product | Size(mm) | Grade Nos | Specification |
Cold Rolled Seamless Tubes & Pipes |
Φ(3~159)*(0.2~6.0)*L | TA9,TA10,TC4 | GB/T,ASTM, ASME,AMS,ISO |
Welding Tubes & Pipes |
Φ(16~63)*(0.5~2.5)*L |
Specifications
| Product | Titanium and Titanium alloy welded tube |
| Size |
OD: 19.0mm (0.75") and 25.4mm (1.0"), Length: 1000mm-15000mm (39.4"-590.6"), Thickness: 0.5mm-0.7mm (0.02"-0.028") Or Customized |
| Material | Gr.1, Gr.2, Gr.9 |
| Standard | ASTM B337, ASTM SB338, ASTM B861, ASTM B862,etc. |
| Shape | Round |
Application
Titanium welded tubes and pipes can be used in heat exchangers and condensers, all kinds of corrosive fluid transmission
pipeline system, Titanium bicycle tube, automobile exhaust pipe and offshore aquaculture, etc..
Chemical components of each grade
| Grade | Fe% | C% | N% | H% | O% | Al% | V% | Mo% | Ni% | Pd% | Ti |
| Gr1 | 0.2 | 0.08 | 0.03 | 0.015 | 0.18 | -- | -- | -- | -- | -- | BAL. |
| Gr2 | 0.3 | 0.08 | 0.03 | 0.015 | 0.25 | -- | -- | -- | -- | -- | BAL. |
| Gr3 | 0.3 | 0.08 | 0.05 | 0.015 | 0.35 | -- | -- | -- | -- | -- | BAL. |
| Gr4 | 0.3 | 0.08 | 0.05 | 0.015 | 0.40 | -- | -- | -- | -- | -- | BAL |
| Gr5 | 0.25 | 0.08 | 0.03 | 0.015 | 0.02 | 5.5 - 6.75 | 3.5 - 4.5 | -- | -- | -- | BAL |
| Gr7 | 0.3 | 0.08 | 0.03 | 0.015 | 0.25 | -- | -- | -- | -- | 0.12 - 0.25 | BAL. |
| Gr9 | 0.25 | 0.08 | 0.03 | 0.015 | 0.15 | 2.5 - 3.3 | 2.0 - 3.0 | -- | -- | -- | BAL. |
| Gr12 | 0.3 | 0.08 | 0.03 | 0.015 | 0.25 | -- | -- | 0.2 - 0.4 | 0.6 - 0.9 | -- | BAL. |
| Gr23 | 0.3 | 0.08 | 0.03 | 0.015 | 0.13 | 5.5 - 6.75 | -- | -- | -- | -- | BAL |
Mechanical characteristics of each grade
| Grade | Tensile Strength (min) | Yield Strength 0.2% Offset | Elongation in 2 inch or 50mm % (min) | ||||
| KSI | MPa | KSI | MPa | ||||
| Gr.1 | 35 | 240 | 20 - 45 | 138 - 310 | 24 | ||
| Gr.2 | 50 | 345 | 40 - 65 | 275 - 450 | 20 | ||
| Gr.3 | 65 | 450 | 55 - 80 | 380 - 550 | 18 | ||
| Gr.4 | 80 | 550 | ≥70 | ≥483 | 15 | ||
| Gr.5 | 138 | 950 | ≥128 | ≥880 | 14 | ||
| Gr.7 | 50 | 345 | ≥40 | ≥275 | 24 | ||
| Gr.9 | 125 | 860 | ≥105 | ≥725 | 10 | ||
| Gr.12 | 70 | 483 | ≥50 | ≥345 | 18 | ||
| Gr.23 | 125 | 860 | ≥115 | ≥790 | 15 | ||
Processing machine:
Machining Process:
2. Applications
Titanium and Titanium alloy can be used in aircraft engines and parts, chemical equipment parts
(reactors, pipes, heat exchangers and valves, etc.). Petroleum Industry, Nuclear Power Industry,
Marine Industry, Electrolytic Industry etc.
Why Choose Us
Premium Quality
All the products are mill certified and 100% traceable from mill processing through melt source to maintain quality control requirements. Third Party Inspectation.
Competitive Price
Working from titanium sponge and finishing the raw material melting, milling, drawing, cutting, packaging in house for most products, this makes our prices much more competitive as the middleman is cut out. And our cooperated forwarder and courier charge us reasonable costs for goods delivery.
Superior Serviceand After-Service
Quick response and on-time delivery. We also offer value-added processing such as welding, drilling, surface treatment and customized cutting.
